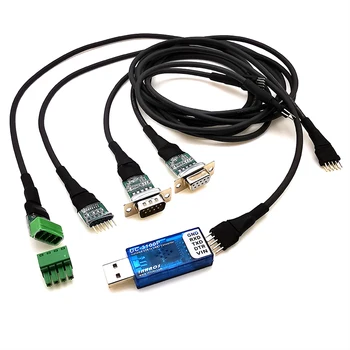

The UC 3100P is a premium USB to UART converter designed to provide isolated communication, ensuring the safety and stability of your electronic systems. Its versatility allows it to convert USB signals into various serial communication protocols, including TTL UART, RS-232, RS-485, and RS-422.
Isolation for Enhanced Safety
The primary advantage of this converter lies in its isolation capabilities. In many industrial applications, significant voltage differences exist between a PC and its peripheral devices. This voltage difference can compromise the stability and even damage the equipment. The UC 3100P effectively isolates the communication path, eliminating potential ground loops and voltage spikes, thereby protecting both the PC and the connected devices.
Versatile Compatibility
The UC 3100P offers comprehensive compatibility, supporting various communication protocols. It seamlessly converts USB signals into TTL UART, which is ideal for connecting to microcontrollers such as Arduino pro mini. Additionally, it supports RS-232 communication with both male and female DB9 connectors, allowing for a wide range of serial devices to be interfaced. Furthermore, it enables USB to RS-485 and RS-422 conversions, making it suitable for industrial automation and long-distance communication applications.
High-Speed Performance
The converter operates at USB 2.0 full speed, ensuring rapid and reliable data transfer. Its robust design and efficient operation provide stable communication, making it ideal for demanding industrial environments. Its ability to handle communication speeds of up to 1Mbps allows for efficient data transmission.
Features and Benefits
- Bidirectional Communication: Supports both transmit and receive operations, facilitating seamless communication.
- Industrial Grade: Built to withstand harsh industrial conditions, ensuring reliability and durability.
- Compact Design: Small footprint and lightweight construction make it easy to integrate into various systems.
- Supports Multiple Operating Systems: Compatible with Windows, Linux, Mac OS, and Android, offering wide platform support.
Frequently Asked Questions
Q: What is the difference between USB to TTL and USB to UART?
A: TTL (Transistor-Transistor Logic) and UART (Universal Asynchronous Receiver-Transmitter) are different protocols for serial communication. TTL operates at lower voltage levels and is commonly used in microcontroller applications, while UART is a higher-level protocol that manages the data transmission and reception process. The UC 3100P supports both USB to TTL and USB to UART conversions.
Q: Why is isolation important in USB communication?
A: Isolation prevents electrical interference between different devices connected to a USB port. Without isolation, voltage differences and ground loops can lead to data corruption, system instability, and even equipment damage. The UC 3100P provides isolation, ensuring stable and reliable communication.
Q: What are the applications of the UC 3100P?
A: The UC 3100P is suitable for a wide range of industrial, automation, and embedded system applications. Its isolation capabilities make it ideal for interfacing sensitive equipment, protecting against electrical noise, and enabling long-distance communication.
